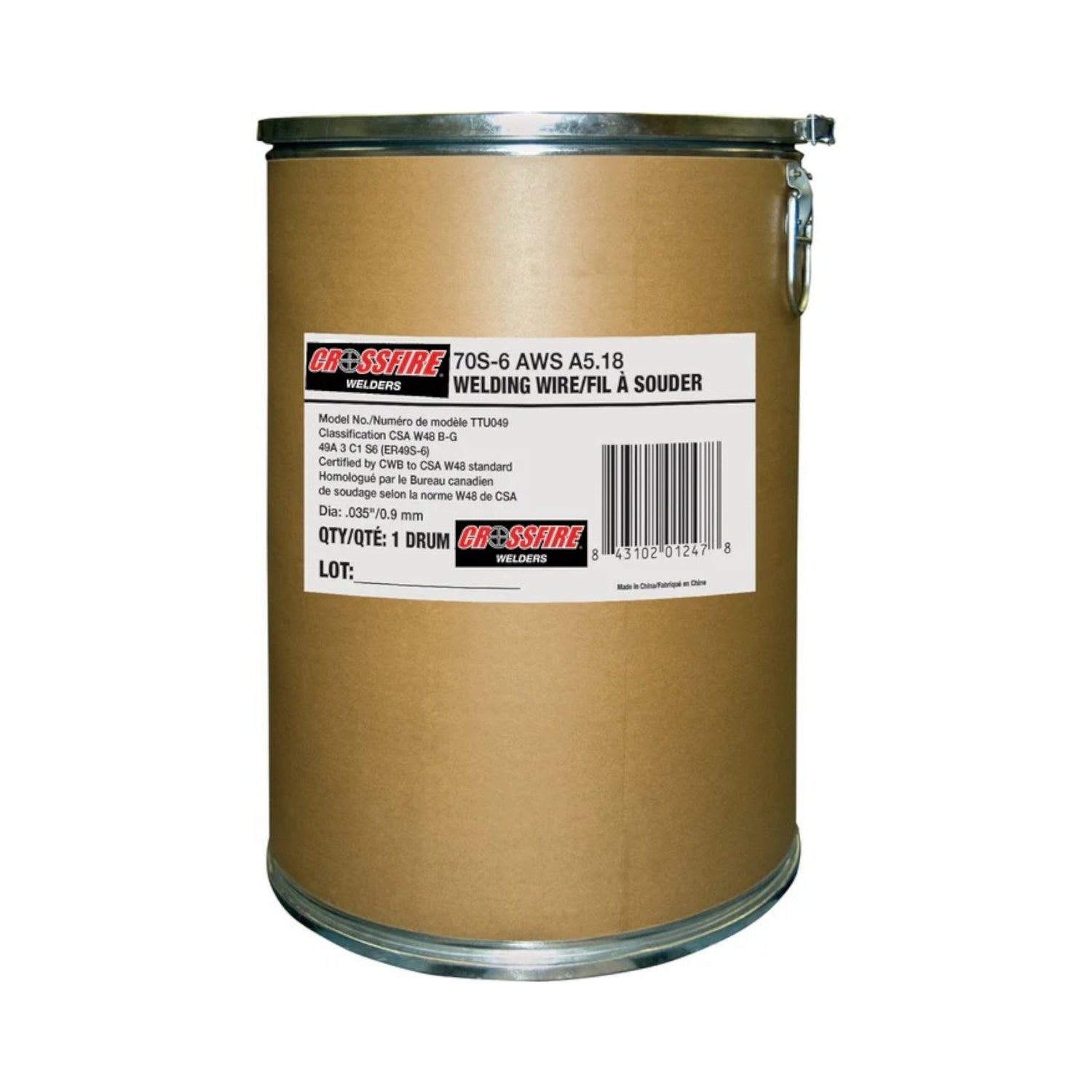

Drum ER70S-6 Copper Coated Mig Wire

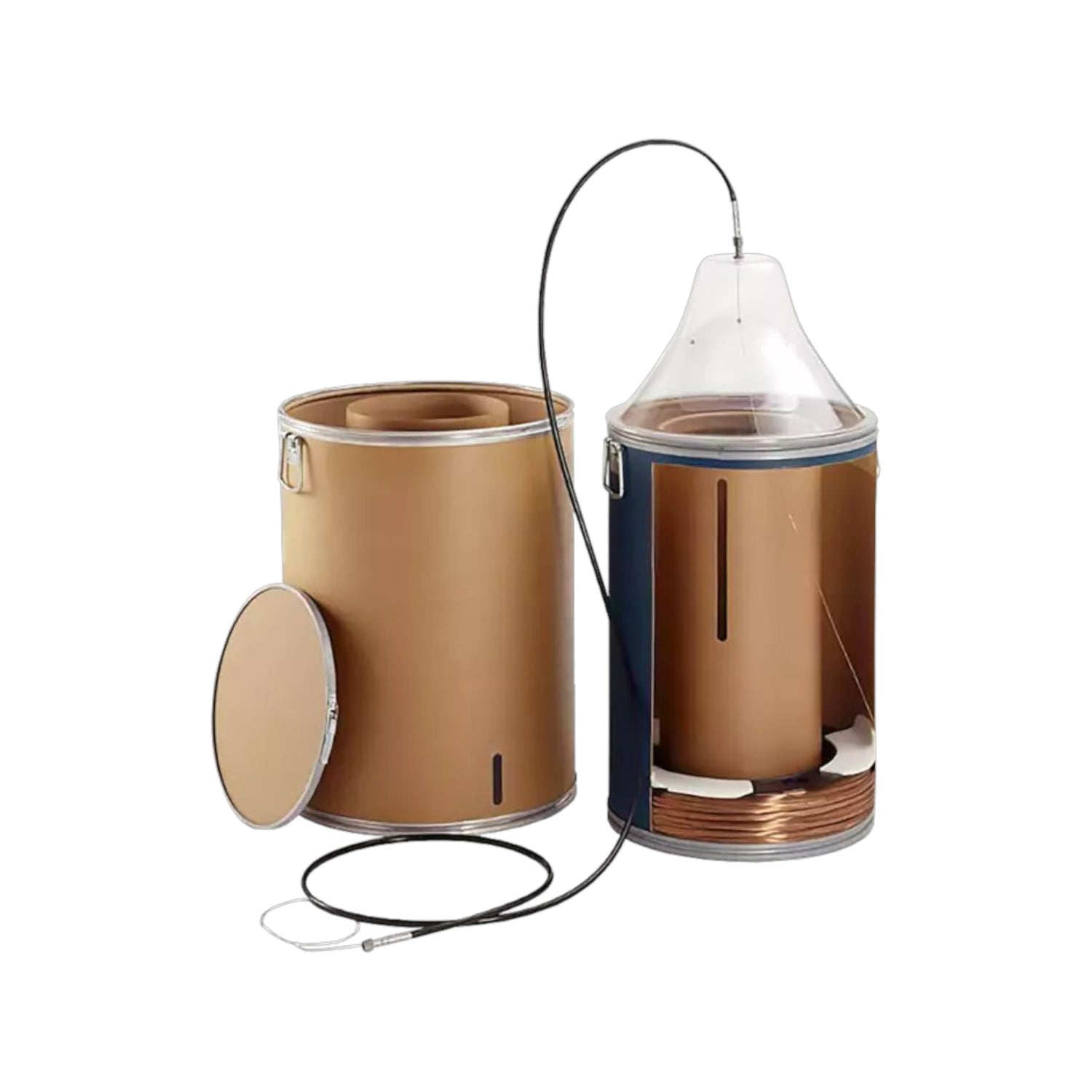

Super MIG 70 is a premium welding wire containing higher levels of manganese and silicon then other standard grades of MIG wire. These features enable the wire to have excellent wetting ability with high weld deposits and excellent tolerance to rust and scale. This is a Drum of MIG wire for high production or robotic applications
CERIFICATION: ISO 14341 -A- : 3Si1, DIN 8558 SG2, AWS A5.18 ER70S-6
Drum Size:
- Drums: 250kg (550LB) *Please contact us for skid lot pricing*
Wire Diameters Available:
- 0.035"
- 0.045"
Approvals & Certifications:
- AWS 5.18, ASME SFA 5.18
- CWB-CSA W48-06
- ISO-9002
- ABS Quality Evaluations
- Lloyds Register
- TUV & DB
|
Chemical and Mechanical Properties in the Metal Deposited, in accordance with AWS
|
||||||||
|
AWS Classification
|
Gas
|
Yield Strength | Tensile Strength |
Elongation % Min. 2"
|
||||
| PSI | MPA | PSI | MPA | |||||
| ER70S-6 | CO2 | 68,000 | (470) | 81,000 | (561) | 29% | ||
| 75-25 | 72,000 | (500) | 86,000 | (590) | 27% | |||
| Typical Chemical Analysis | |||||
| C | Mn | Si | P | S | Cu |
| 0.07-0.15 | 1.40-1.85 | 0.80-1.15 | 0.025 Max | 0.035 Max | 0.50 Max |
