ER4047 Drum Aluminum MIG Wire
ER4047 Drum Aluminum MIG Wire - 150LB / 0.9mm (0.035") is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Shipping methods can be selected and calculated upon check out. Orders over $149 qualify for FREE Shipping - Some conditions apply

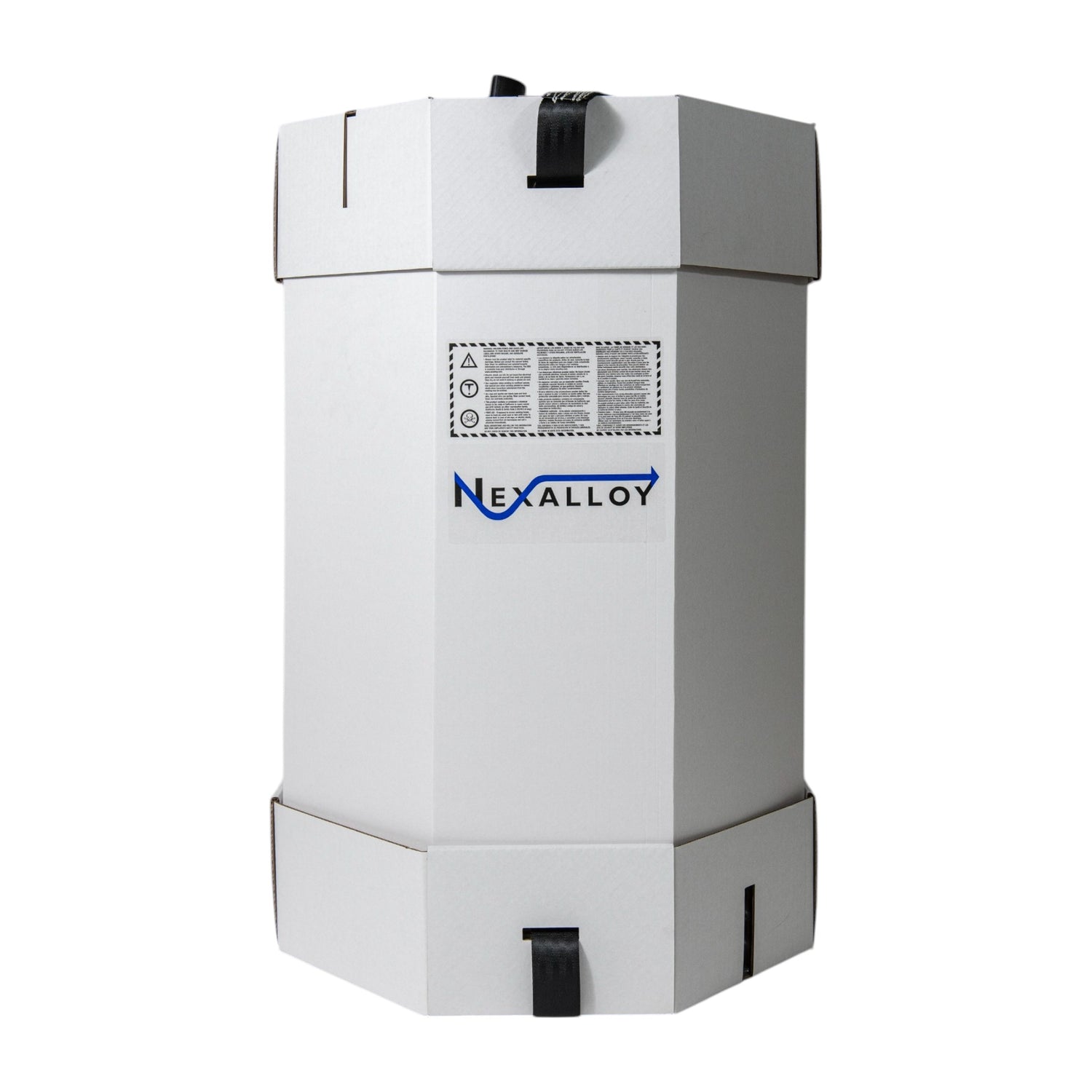

Nexal Aluminum Drum of ER4047 Premium MIG wire
ER4047 is an aluminum welding alloy with a 12% silicon content, originally designed for brazing. It features high fluidity, a narrow freezing range, a low melting point, and minimal shrinkage. ER4047 serves as a versatile, free-flowing filler metal, offering excellent resistance to corrosion and hot cracking during welding. It is also suitable for use at elevated temperatures over extended periods.
This alloy is available in spools and cut lengths for MIG, TIG, and brazing applications on materials such as 1060, 1350, 3003, 3004, 3005, 5005, 5050, 6053, 6061, 6951, 7005, as well as cast alloys 710.0 and 711.0. ER4047 has a melting range of 1070-1080°F and a density of 0.96 lbs/ci. It typically has a tensile strength of 27,500 psi, with a post-anodized color of gray-black.
Available in all standard diameters and packaging.
Nexalloy ER4047 complies with: AWS A5.10, CWB.
ER4047 TECHNICAL DATA SHEET: Data Sheet Found HERE!
Sizing:
150LB DRUMS - 0.9mm, 1.0mm, 1.2mm, 1.6mm
300LB DRUMS - 0.9mm, 1.0mm, 1.2mm, 1.6mm
DRUM HOOD ACCESSORY OPTIONS:
- 4000 Series Rotating Inner Drum Dispenser - SP-N-CA-4000-01
- 5000 Series Rotating Inner Drum Dispenser - EN-N-CA-5000-01
- 5000 Series Drum Ring - BR-N-CA-5000-01
- Universal Drum Hood and Pull Kit - WOC23.5-DP
Features:
- 12% Silicon Content: Optimized for brazing applications.
- High Fluidity: Ensures smooth, easy flow during welding.
- Narrow Freezing Range: Provides better control during solidification.
- Low Melting Point: Facilitates easy application and reduced thermal distortion.
- Minimal Shrinkage: Reduces the risk of defects and improves the overall weld quality.
- Corrosion Resistance: Offers excellent protection against corrosion in welded joints.
- Hot Cracking Resistance: Enhances durability and strength of the weld in high-temperature environments.
- Elevated Temperature Suitability: Performs well at high temperatures over extended periods.
- Available for MIG, TIG, and Brazing: Compatible with various welding methods.
Compatible with Various Alloys: Can be used on materials like 1060, 1350, 3003, 3004, 3005, 5005, 5050, 6053, 6061, 6951, 7005, and cast alloys 710.0 and 711.0.
Melting Range: 1070-1080°F. - Density: 0.96 lbs/ci.
- Tensile Strength: Typically 27,500 psi.
- Post-Anodized Color: Gray-black.
- Available in Standard Diameters and Packaging: For convenience and adaptability.
- Complies with AWS A5.10 and CWB Standards: Ensures high-quality and reliable performance.
NEXALLOY ER4047 ADVANTAGES:
- Superior wire surface finish ensures trouble free welding
- Exceptional cleanliness ensures sound weldments
- Unique diameter control for consistent feeding, robotic or manual
NOTE: Due to the weight and size of this product please call our customer service hotline for shipping costs.
Toll Free: 1-855-410-9309 or Email Us: sales@weldedge.ca
