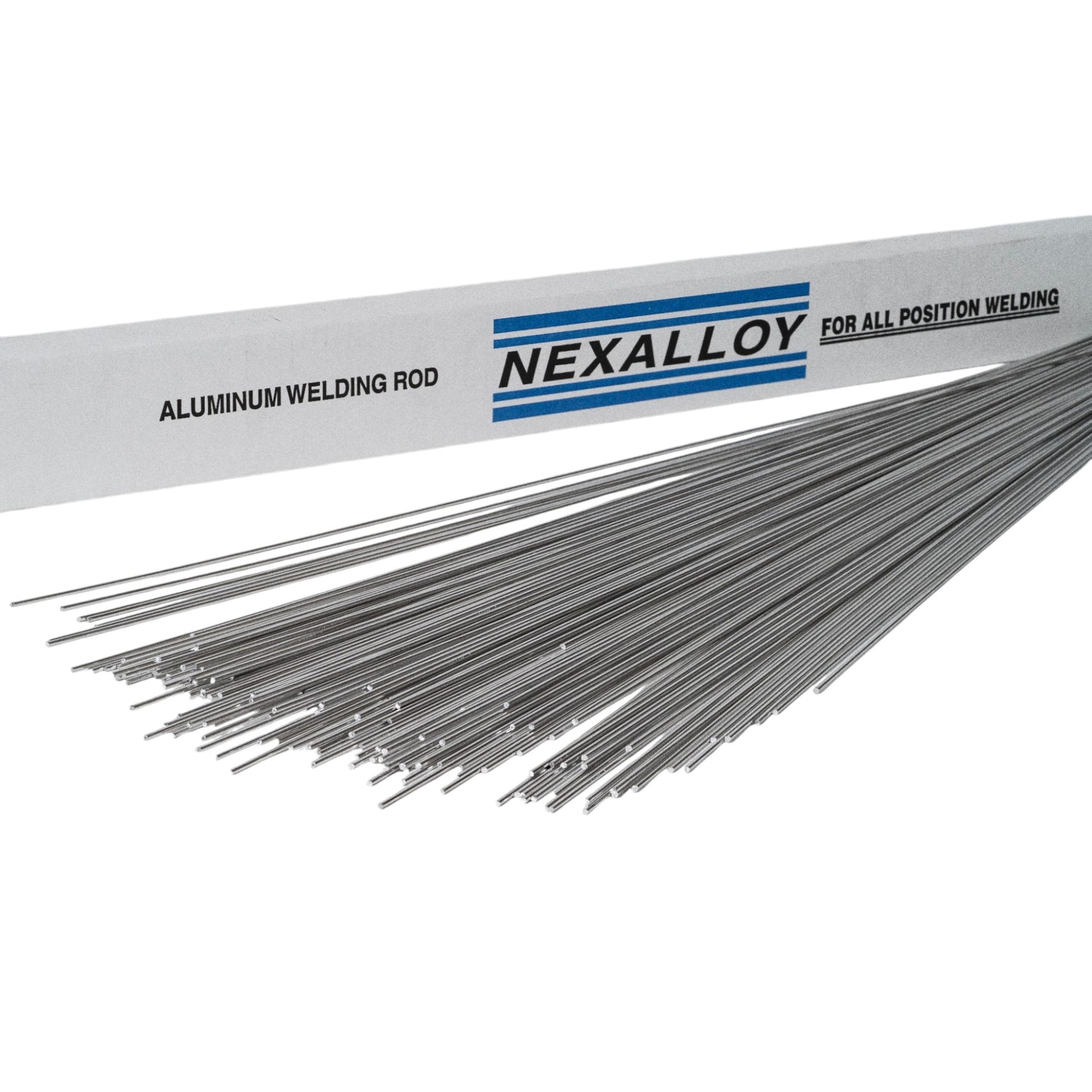

ER5356 Aluminum TIG Rod
ER5356 Aluminum TIG Rod - 10LB / 1.2mm (0.045") is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Shipping methods can be selected and calculated upon check out. Orders over $149 qualify for FREE Shipping - Some conditions apply
Nexal Aluminum ER5356 Premium TIG ROD
ER5356 is a 5% magnesium aluminum filler metal, available in spools and cut lengths for both MIG and TIG applications. It features higher levels of magnesium (Mg), titanium (Ti), and manganese (Mn), along with the addition of chromium and a slight reduction in silicon. These modifications enhance its corrosion resistance, making it an ideal choice for applications in or near saltwater environments.
Commonly used with base metals like 5050, 5052, 5083, 5356, 5454, and 5456, ER5356 is the second most widely used aluminum filler metal. It has a melting range of 1060-1175°F, a density of 0.96 lbs/ci, and a typical tensile strength of 38,000 psi. Its post-anodized color is white. Available in all standard diameters and packaging.
Nexalloy ER5356 conforms to: AWS A5.10, CWB, and ABS.
ER5356 TECHNICAL DATA SHEET: Data Sheet Found HERE!
Box Sizes Available:
- 10LB Box of TIG ROD
- 5LB Box of TIG ROD
Features of NEXALLOY ER5356:
- 5% Magnesium Content: Provides enhanced strength and weldability.
- Improved Corrosion Resistance: Higher levels of magnesium (Mg), titanium (Ti), and manganese (Mn) with added chromium for better performance in corrosive environments, especially near saltwater.
- Widely Used Aluminum Filler Metal: The second most commonly used aluminum filler metal.
- Common Base Metals: Ideal for use with 5050, 5052, 5083, 5356, 5454, and 5456 alloys.
- Melting Range: 1060-1175°F.
- Density: 0.96 lbs/ci.
- Typical Tensile Strength: 38,000 psi.
- Post-Anodized Color: White.
- MIG and TIG Compatibility: Available for both MIG and TIG welding applications.
- Standard Diameters and Packaging: Available in various diameters and packaging options to suit different needs.
- Complies with Industry Standards: Conforms to AWS A5.10, CWB, and ABS
NEXALLOY ER5356 ADVANTAGES:
- Superior wire surface finish ensures trouble free welding
- Exceptional cleanliness ensures sound weldments
- Unique diameter control for consistent feeding, robotic or manual
