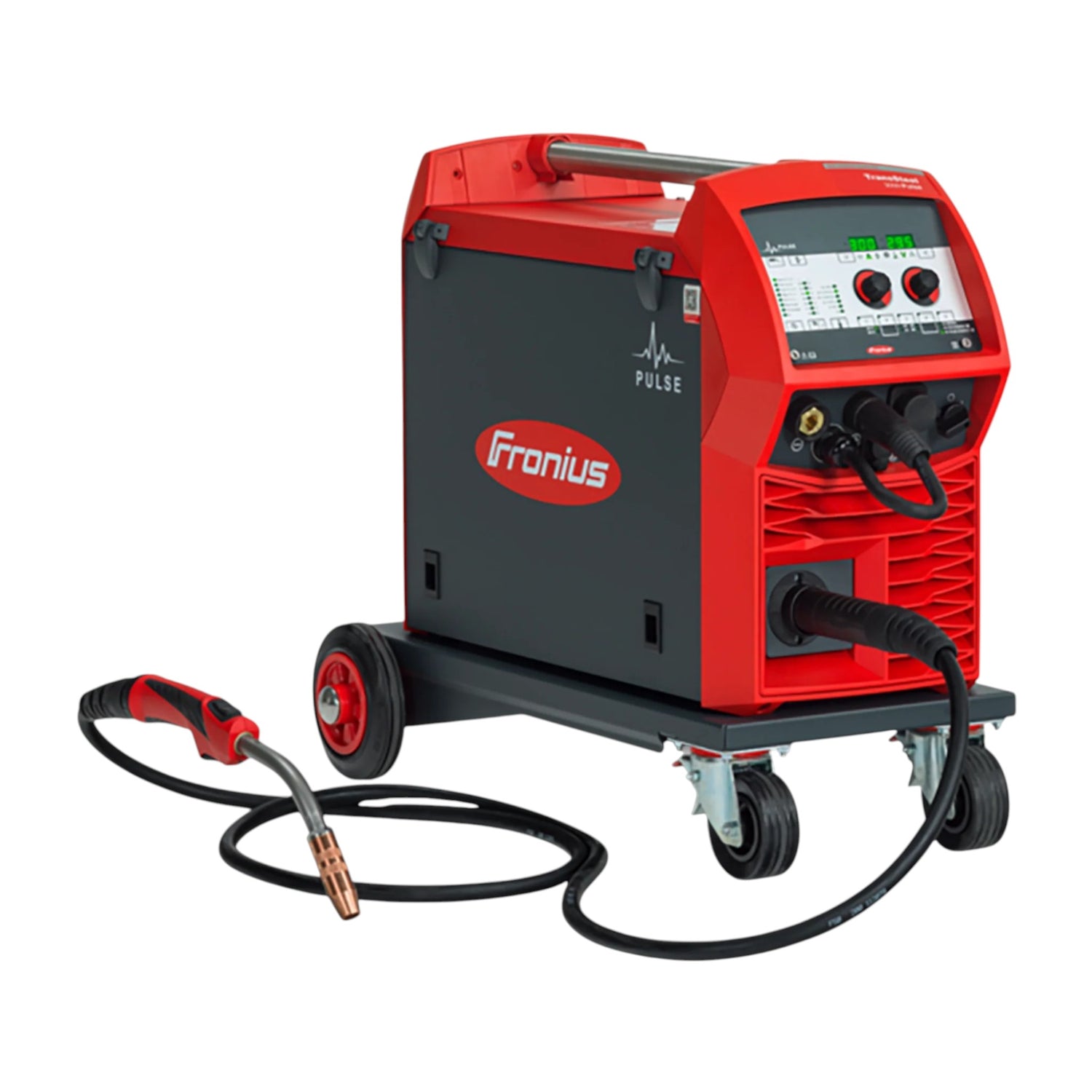

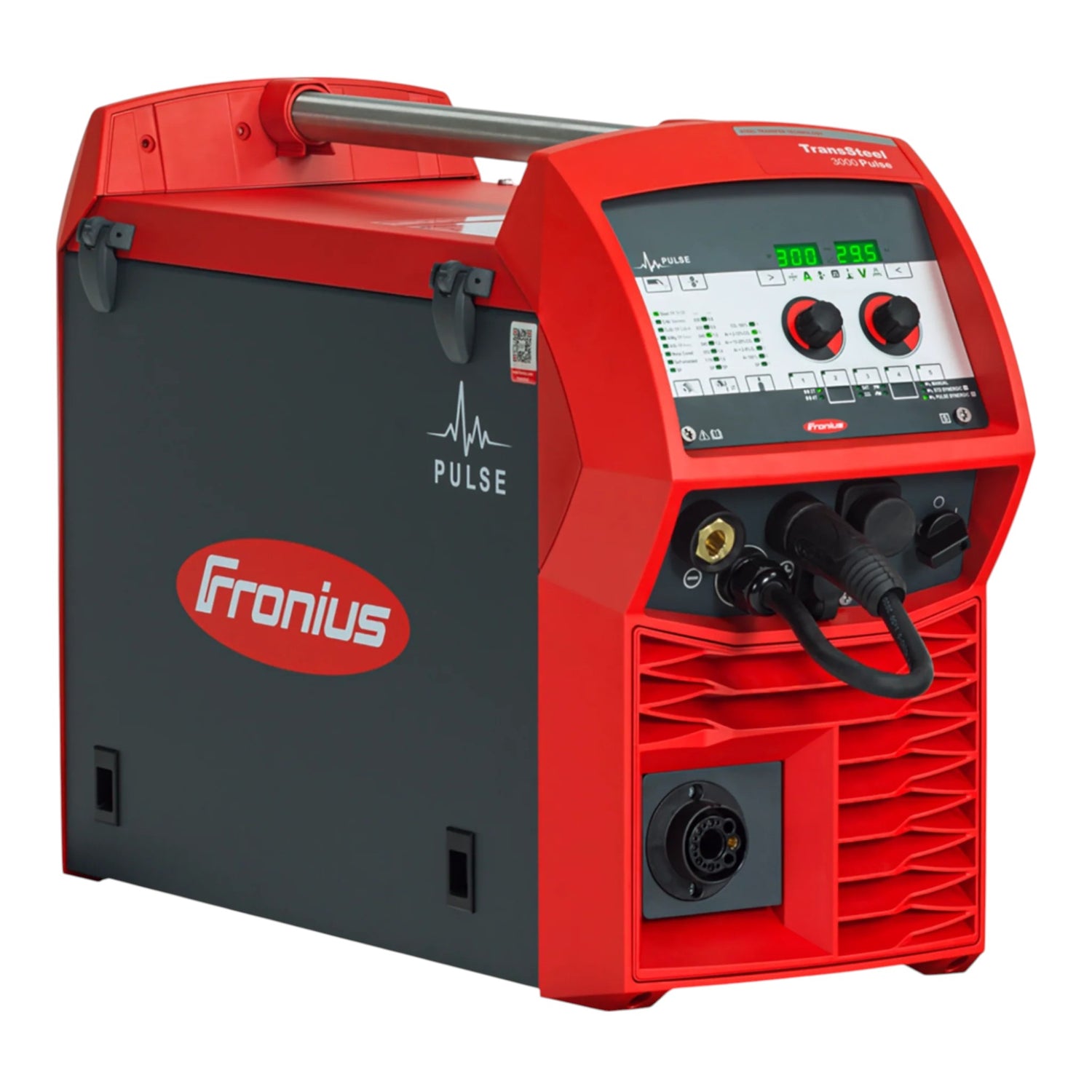

Fronius TransSteel 3000C Pulsed MIG Welder

TransSteel 3000C Pulsed MIG Welder

The Fronius TransSteel 3000c is a powerful 300-amp MIG welding system with an integrated wire feeder, designed to meet the demands of professionals seeking superior performance and precision. While many welders now feature pulsed MIG capabilities, Fronius sets a new industry standard with its exclusive synergic MIG + SynchroPulse technology, enabling welds with exceptional aesthetics—rivalling the appearance of TIG welds.
Engineered for businesses that require clean, high-quality welds with a flawless finish, the TransSteel 3000c delivers unmatched reliability and innovation. Explore how Fronius continues to redefine excellence in welding technology

The TransSteel 3000C is a robust, high-performance welding system designed for demanding industrial applications. Featuring an advanced Pulse system with 57 adjustable pulse characteristics, it provides exceptional control and flexibility, significantly expanding the capabilities of the MIG welding process. Engineered for precision and efficiency, the TransSteel 3000C delivers superior weld quality and reliability, making it an essential tool for professionals seeking optimal performance.

Precision Welding with Tailored Pulse Characteristics

The Fronius TransSteel 3000C is engineered for superior welding performance, featuring meticulously developed pulse characteristics optimized for various materials, including:

• Steel
• Stainless Steel
• Aluminum
• Flux-Cored Wire
• Metal Core

This advanced pulse technology ensures high-quality, precision welds, making the TransSteel 3000C an indispensable tool for professionals demanding reliability and aesthetic excellence.

Pulse Controlled Spray Arc (PCSA) – Unmatched Welding Accuracy

The TransSteel 3000C stands out with its innovative Pulse Controlled Spray Arc (PCSA), a groundbreaking feature that revolutionizes MIG welding. Unlike conventional electric arcs that burn above the weld pool, the PCSA goes further—spraying the filler wire into the weld pool while driving the arc deeper into the workpiece material. With no direct contact between the filler metal and the workpiece, short circuits are eliminated, resulting in near-zero spatter.

Focused Arc for Enhanced Penetration

The PCSA operates with low process voltage, narrowing the arc and directing precise pressure into the material. This produces deep, narrow penetration, delivering cleaner, stronger, and more refined welds with minimal heat distortion.

Optimized Welding Efficiency

Even under high arc pressure, the PCSA does not ignite the arc but instead presses it onto the weld pool, ensuring optimal control and superior weld quality. With the advanced technology of the TransSteel 3000C, professionals can achieve impeccable welding results with maximum efficiency.

Operator Advantages for Superior Welding Performance

The Fronius TransSteel 3000C is designed to enhance operator experience and welding precision with key advantages:

• Reduced Light and Heat Radiation – The arc actively presses onto the weld pool, minimizing radiation exposure for a more controlled and comfortable operation.
• Reliable Root Edge Detection – Despite relatively low welding parameters, the system ensures dependable root edge recognition, contributing to consistent, high-quality welds.
• Lower Energy Input – Optimized voltage settings reduce energy consumption while maintaining welding efficiency, resulting in less heat distortion.
• Near Zero Spatter – Advanced arc control virtually eliminates spatter, reducing cleanup time and material waste.

Synchro Pulse – Precision Welds with TIG-Like Aesthetics

Fronius’ exclusive Synchro Pulse technology revolutionizes MIG welding by synchronizing amperage pulsing with synergic wire feed pulsing to achieve the visually striking stacked-dime weld appearance typically reserved for TIG welding.

• Optimized Heat Control – High-current pulses generate a hot, extended arc, while low-current pulses enable cooling, ensuring balanced heat distribution across the weld pool.
• Dynamic Filler Metal Feed – When the weld pool reaches peak temperature, filler metal is introduced at an accelerated rate, promoting efficient cooling and precise weld formation.
• Unmatched Performance – Operating at a frequency of up to 5Hz, Synchro Pulse delivers an exceptional level of weld consistency, ensuring superior aesthetics and structural integrity.

The TransSteel 3000C is built to provide welders with unparalleled precision, efficiency, and reliability, making it the ultimate solution for demanding welding applications.

Advanced Standard Features for Exceptional Welding Performance

Welding steel demands a robust and reliable machine capable of maintaining peak performance even in harsh environments such as construction sites, agricultural operations, and metal fabrication shops. Traditionally, welding aluminum and exotic materials like copper-silicon alloys requires specialized equipment—spool guns, push-pull setups, and extensive operator training. But with the Fronius TransSteel 3000C, that’s no longer the case.

Seamless Aluminum Welding with a Standard MIG Gun

The TransSteel 3000C delivers flawless aluminum MIG welding without the need for additional feeding equipment. Extensive testing has proven its superior wire feeding reliability—no birds’ nests, no tangling, and no interruptions. Whether the whip is coiled at the operator’s feet, manipulated into extreme positions, or moved unpredictably mid-weld, the TransSteel 3000C ensures uninterrupted wire flow and consistent weld quality.

Superior Performance Across All Materials

While its aluminum welding capabilities are remarkable, the true strength of the TransSteel 3000C lies in its unmatched performance with mild and stainless steel. Engineered with innovative features and optimized welding parameters, it delivers exceptional precision, minimal spatter, and industry-leading efficiency.

The Fronius TransSteel 3000C Multi-Process Welder stands as the pinnacle of reliability, versatility, and weld quality, setting a new standard in professional welding technology.

Overview

• Manufactured in Austria
• Power Requirements: 460V 3-Phase & 575–600V 3-Phase, delivering up to 300A maximum output
• Extended Reach: Operates seamlessly with extension cables up to 100m
• SynchroPulse Technology: Achieves the stacked-dime appearance typically seen in TIG welds—using MIG
• Wire Compatibility: Supports both 8-inch and 12-inch spools (44lb/20kg)
• Overvoltage Protection: Prevents circuit overload, ensuring uninterrupted operation
• MIG Welding Advantages:
  • Weld aluminum without a spool gun
  • Synergic Welding: Set just one parameter and start welding
  • Spot and Stitch Welding for refined control
• TIG Features: Advanced TIG Pulsing System for precise puddle control
• STICK Welding Enhancements: HotStart and SoftStart functions for effortless electrode ignition

What Sets the TransSteel 3000C Multi-Process Welder Apart

Maximum Power Flexibility for Any Worksite

The intelligent power control system enables seamless operation—even with up to 100m of extension cable—without loss of performance. This durable welder functions reliably when powered by generators, ensuring stable voltage and amperage under all conditions.

Effortless Synergic MIG Welding – One Parameter to Weld

Backed by Fronius European engineering, the Synergic MIG function simplifies operation—just enter your material type, thickness, wire, and gas, and the machine automatically selects the optimal welding parameters. As settings are fine-tuned, all related parameters remain synchronized, guaranteeing superior arc stability, minimal spatter, and enhanced weld aesthetics.

Having compared this technology against competitors, Fronius consistently outperforms the industry standard. The result? Smoother arc characteristics, cleaner welds, and unmatched efficiency.

Real-World Calibration for Optimal Precision

Fronius takes welding accuracy a step further by ensuring real-world calibration:

• Activate calibration mode
• Remove the MIG nozzle
• Touch and hold your contact tip to the work surface

This process measures actual voltage loss from the power source to the contact tip and automatically adjusts the machine’s parameters accordingly. Additionally, real-time monitoring of arc length and wire resistance allows the system to fine-tune settings dynamically, ensuring continuous precision.

Streamlined Welding Adjustments & Memory Recall

The Synergic MIG mode offers a single-parameter operation—simply rotate the knob to lock in the desired settings for quick and effortless fine-tuning. Once perfected, weld settings can be saved in five Easy Job memory slots, enabling instant recall of optimized configurations.

Why Choose the TransSteel 3000C?

• Synergic MIG keeps all parameters synchronized
• Leverages European welding expertise for superior results
• Automatically adapts to real-world conditions for accurate performance
• Simplified adjustments via a single control knob
• Five memory slots for quick access to saved welding settings

The Fronius TransSteel 3000C Multi-Process Welder redefines precision, efficiency, and reliability—making it the ideal solution for professionals demanding unmatched welding performance.

Revolutionizing Aluminum MIG Welding with Fronius

The Fronius TransSteel 3000C redefines professional aluminum MIG welding, delivering superior performance without the need for a spool gun or push-pull system. Designed for optimal efficiency, it features specialized synergic MIG settings tailored for 4043 and 5356 aluminum, ensuring seamless wire feeding and flawless welds. Equipped with precision-engineered drive rolls, liners, and contact tips, the TransSteel 3000C provides an unrivaled aluminum welding experience.

Introducing the TransSteel S4T Mode – Precision Trigger Control for Aluminum MIG

The Fronius TransSteel S4T (Special 4-Step) mode offers an exclusive trigger lock sequence, delivering unmatched control over aluminum welding.

• Step 1: Push and hold the trigger to establish the initial weld puddle.
• Step 2: Release the trigger to smoothly guide the torch along the weld path.
• Step 3: Push and hold the trigger again to initiate crater fill at the weld’s endpoint.
• Step 4: Fine-tune each stage to customize settings for pre-heating, cleaning, and controlled crater fill amperage ramp-down.

With this advanced sequencing, welders can achieve precise heat control, superior fusion, and a consistently strong finish, making the TransSteel 3000C the go-to solution for professional aluminum welding.

Key Advantages of Fronius Aluminum MIG Welding

✔ No spool gun required
✔ No wire feeding issues – tested for uninterrupted performance
✔ Specialized trigger sequencing exclusively for aluminum applications
✔ Engineered synergic settings for consistently high-quality welds

Experience next-level aluminum MIG welding with Fronius TransSteel 3000C—where innovation meets precision.

Effortless Multi-Process Welding – Seamless Transition Between MIG, Stick and TIG

Designed for ultimate versatility, the Fronius TransSteel 3000C streamlines multi-process welding, offering unparalleled convenience in switching between MIG and DC TIG operations.

Equipped with dual built-in gas solenoids, the system eliminates the need for manual gas configuration changes—simply swap the torch, activate TIG mode, and start welding immediately.

Intuitive User Interface for Maximum Efficiency

The TransSteel 3000C features a straightforward control panel with two precision knobs and durable push buttons, ensuring fast setup and effortless parameter adjustments.

Engineered for ease of use and optimized workflow, this multi-process welder delivers exceptional flexibility, efficiency, and reliability, making it the ideal choice for professional welding applications.

Advanced TIG Features:

• Advanced TIG pulsing System
• TIG tacking function
• 2 Piece TIG Torch with inter-changeable Heads
• TIG torch arc and amperage control with 2 triggers on torch
• Lift arc Start
• TIG comfort stop
• Dual Integrated gas valve solenoid
• Adjustable 2T-Step and 4T-Step parameters

Advanced TIG Features – Precision, Control, and Efficiency

The Fronius TransSteel 3000C is engineered with cutting-edge TIG welding capabilities, providing unmatched accuracy and ease of use. Designed to optimize weld puddle control, improve fit-up, and enhance overall performance, this system is ideal for professionals and less experienced TIG welders alike.

Advanced TIG Pulsing System (ATPS)

The Advanced TIG Pulsing System enables precise control over the weld puddle, making out-of-position welds significantly easier to execute. With an adjustable pulse frequency range of 1 to 990Hz, welders can regulate heat input effectively—ideal for stainless steel applications and thin-wall materials requiring delicate heat control.

TIG Tacking Function – Seamless Fit-Up Preparation

The smart TIG tacking function simplifies the fit-up and prep work process, allowing welders to join materials without filler metal. A precisely controlled pulsing current bridges the pools between two metal surfaces—eliminating blow-through and preventing keyhole formation.

Fronius TIG THB/TTB 220 Torch – Complete Arc & Amperage Control

The TIG THB/TTB 220 Torch is a two-piece design with interchangeable heads, giving welders full flexibility. Featuring two distinct triggers, operators can adjust amperage values on the fly while maintaining precise arc control.

• 2T-Step and 4T-Step modes for refined operation
• Quick-connect multi-connector with a push-and-twist locking mechanism
• Compatible with existing U/D torches

Lift Arc Start Ignition – A Cleaner, More Efficient Start

The Lift Arc Start system ensures clean arc ignition by minimizing tungsten contact with the workpiece, significantly reducing the risk of contamination.

TIG Comfort Stop – Smooth, Controlled Arc Termination

The TIG Comfort Stop feature prevents burn-in marks when terminating an arc. By sensing arc length and disengaging at the optimal point, it ensures a clean and damage-free finish without dragging across the material.

Dual Integrated Gas Solenoids – Optimized Gas Flow Management

The high-quality built-in solenoid system regulates gas flow automatically upon ignition and termination—eliminating the need for manual gas valve adjustments.

• Two individual gas ports for seamless multi-process welding
• MIG gas cylinder port (80/20 mix gas) and TIG gas cylinder port (100% Argon)
• Effortless process switching without reconnecting gas lines

STICK Welding – Simplified and Efficient

The TransSteel 3000C Multi-Process Welder is packed with advanced SMAW (Stick) welding features, ensuring ease of use for every application:

✔ Anti-Stick function prevents electrode sticking
✔ Hot Start & Soft Start for effortless arc ignition
✔ Dynamic Continuously Adjustable (DCA) Dig Control for optimal arc performance

The Fronius TransSteel 3000C Multi-Process Welder delivers versatility, precision, and superior efficiency—making it the ultimate choice for professional welders.

TRANSSTEEL 3000C MULTI-PROCESS WELDER

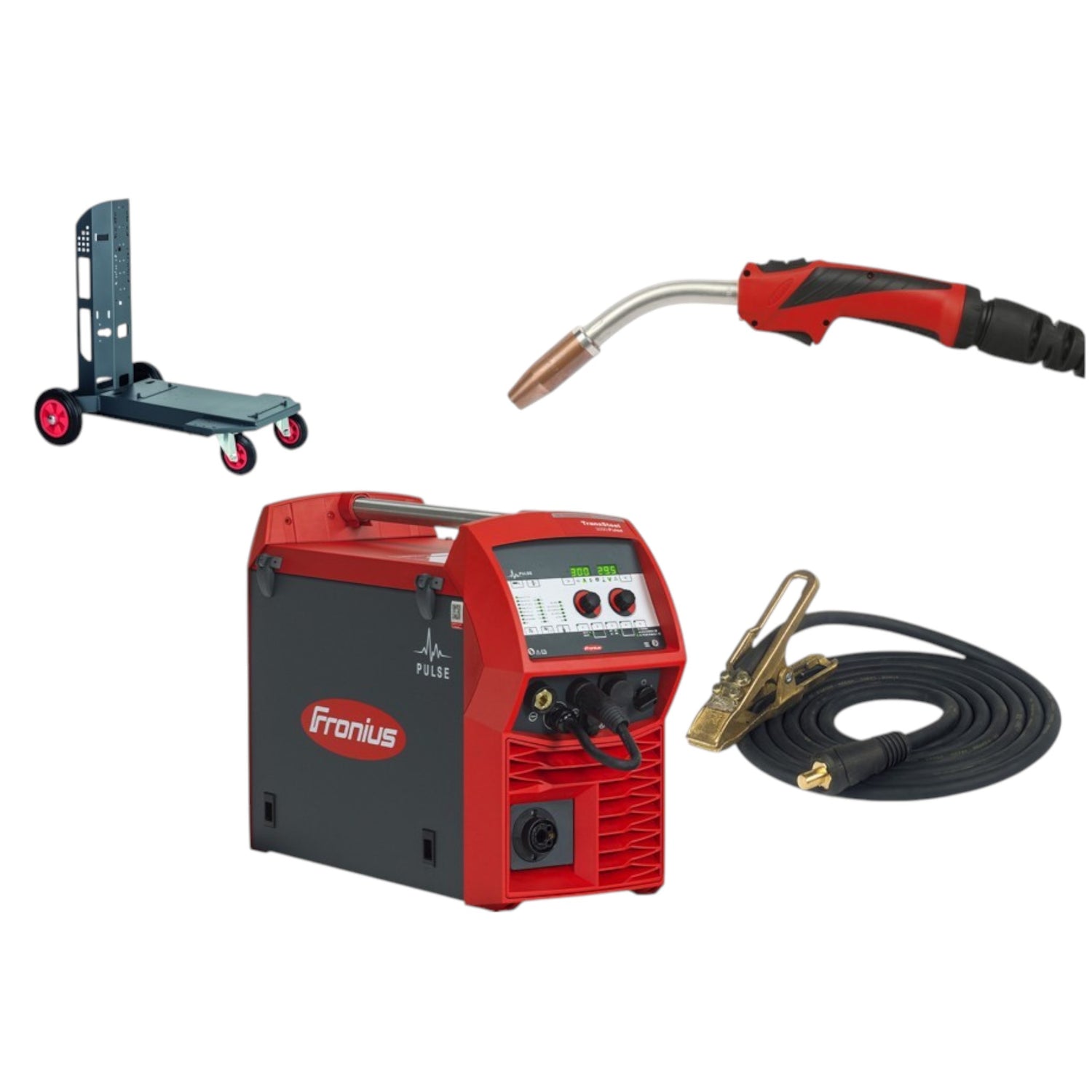

MIG Package Includes:

• TransSteel 3000C Multi-Process Welder
• Torch MTB 400i ML/G/60°
• TIG THP 220i Torch Body
• TIG TTB 220P Torch Head
• Electrode Holder - Stinger
• Pressure roll and drive rollers
• Steel inner liner / Aluminum-Ready inner liner
• Consumables
• Ground Clamp
• Gas Hose

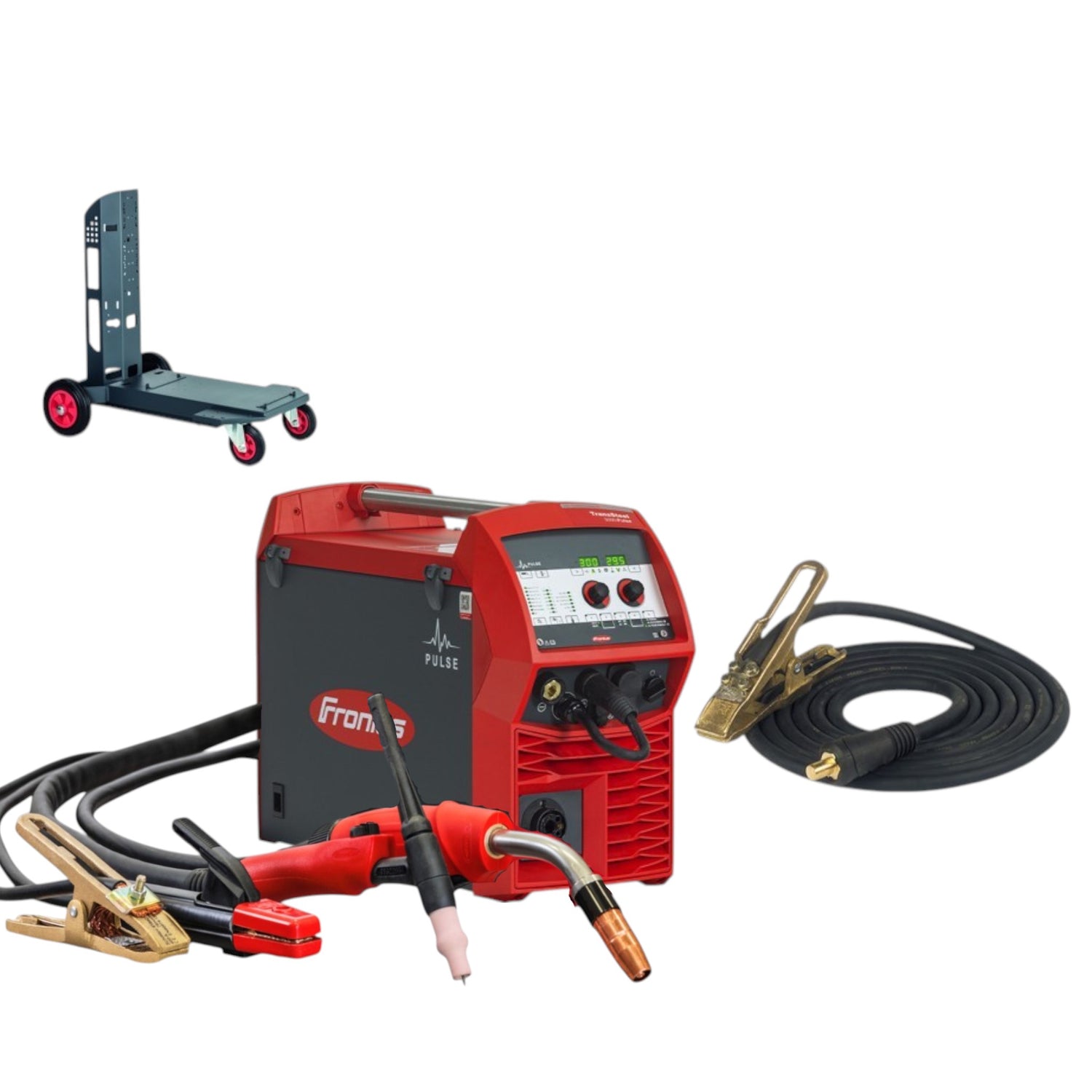

MIG/TIG/STICK Package Includes:

• Everything from Standard MIG Package included
• TTG 220A TIG Torch (4,035,989)
• TIG Consumable Kit (TTB220A, 44,0350,0498)
• Electrode Holder (43,0004,0478)
