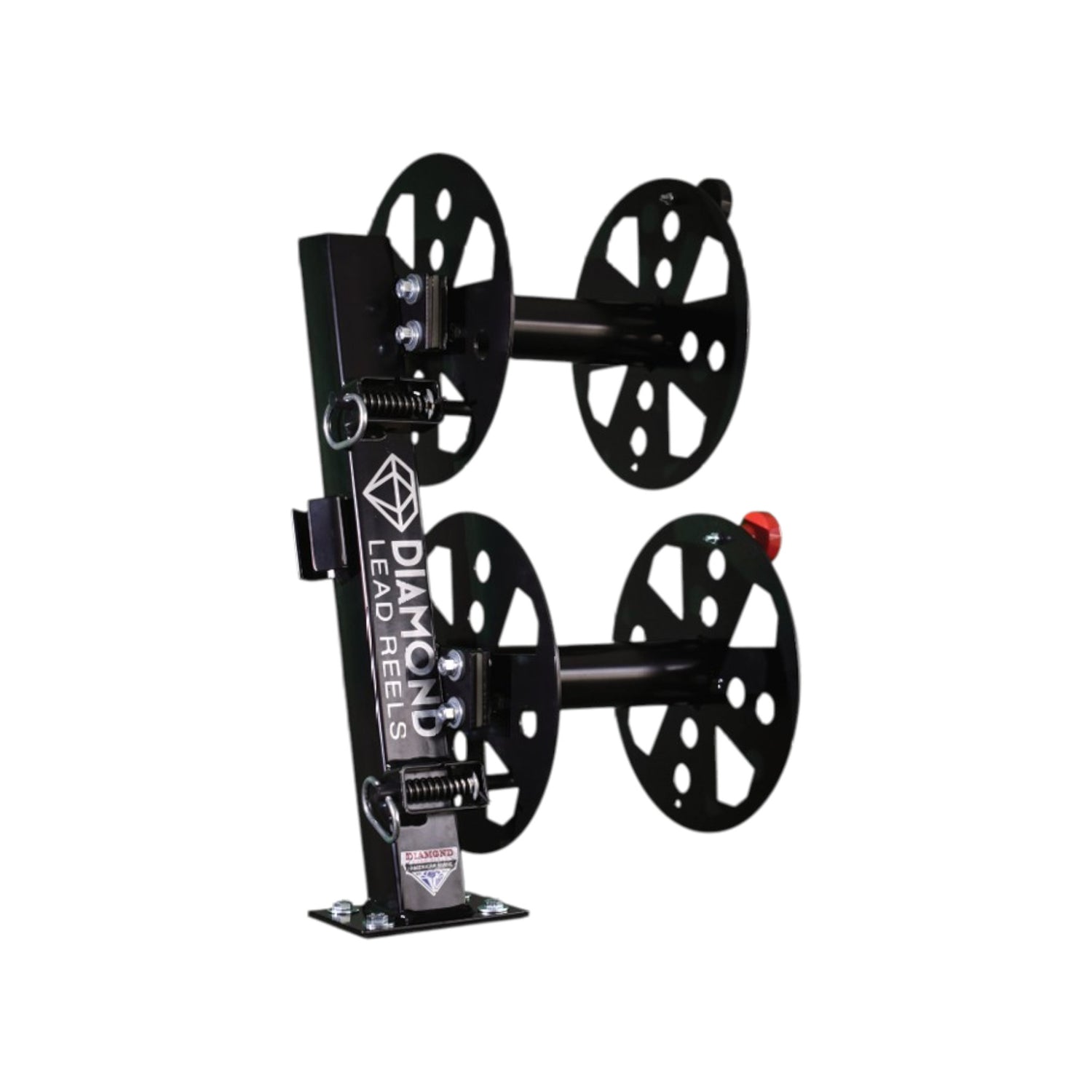

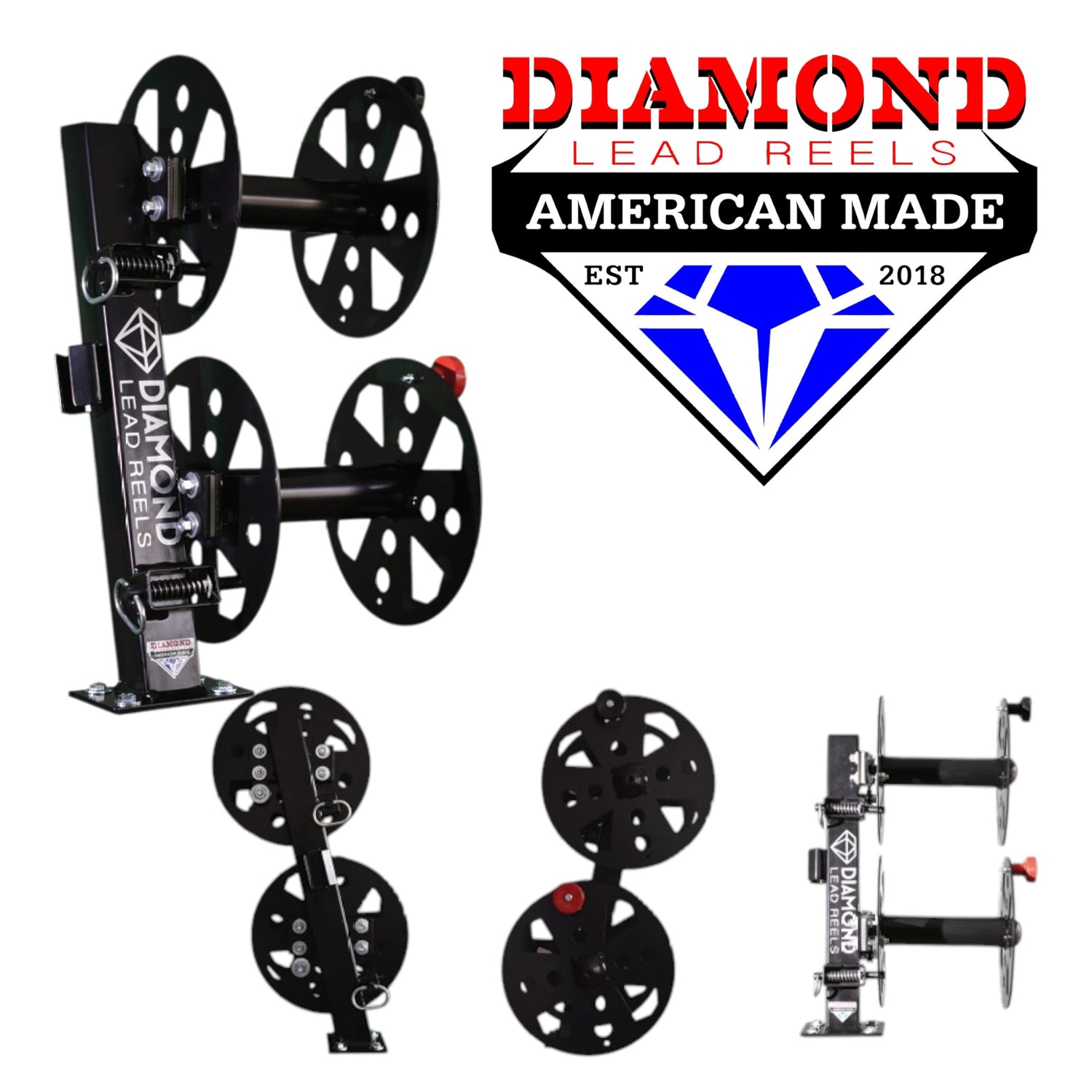

Diamond Welding Lead Reel - Fixed Base, Vertical Stack

Diamond Welding Lead Reel - Fixed Base 10" or 12" Vertical Stack

The Diamond brand vertical lead reels features two heavy duty welding cable reels that are designed to hold between 100-200 feet of welding cable. All Diamond lead reels are made in the USA of powder coated steel. Reels are fully electrically isolated up to 600 amps and come with heavy duty manual friction brakes to keep welding cable from becoming uncoiled. These reels are stacked vertically on top of each other with a fixed base.

CONSTRUCTION:

• Heavy-duty, all-steel construction
• All hardware is ZINC coated
• Available all weather protective covers.
• Dual Ball bearing spools
• Powder coated finish

Specifications:

• Two weld lead reels, stacked vertically on top of each other
• Fixed base (does not swivel)
• Uses lug connections
• 10" Diameter Reel Available
• 12" Diameter Reel Available
• Suggested Cable Lengths for 10" Reels:
  • 150 feet size 1/0 welding cable (per/reel)
  • 100 feet size 2/0 welding cable (per/reel)
• Suggested Cable Lengths for 12" Reels:
  • 200 Feet 1/0 size welding cable (per/reel)
  • 150 Feet 2/0 size welding cable (per/reel)

Dimensions:

• 10 Inch Reel (FBD10BLK): 16.5" W x 25.5" H x 12" D
  7" x 6" Base


Features:

• Made in Pennsylvania, USA!
• Stays connected to the welder at all times.
• Vented circle design allows for free air flow over your lead to aid in cooling.
• Heavy-duty manual friction brake is adjustable, allows for adjustable tension and prevents free spooling of leads.
• Locking pull pins secure cables while not in use.
• Comes standard with 600 amp spool insulators.
• Heavy-duty, all-steel construction
• Ball bearing spools
• Powder coated for a lasting finish
